Why 4-Way Pallet Shuttles Are Transforming Automated Warehouse Storage

Introduction
4-way pallet shuttles are rapidly gaining traction in the material handling industry as a flexible, scalable, and high-density solution for automated pallet storage and retrieval. While the technology has existed in niche applications for years, a wave of advancements has now made it a mainstream contender.

In this blog, we’ll break down what 4-way pallet shuttles are, how they compare to traditional stacker crane AS/RS systems, and which applications are best suited to their strengths.

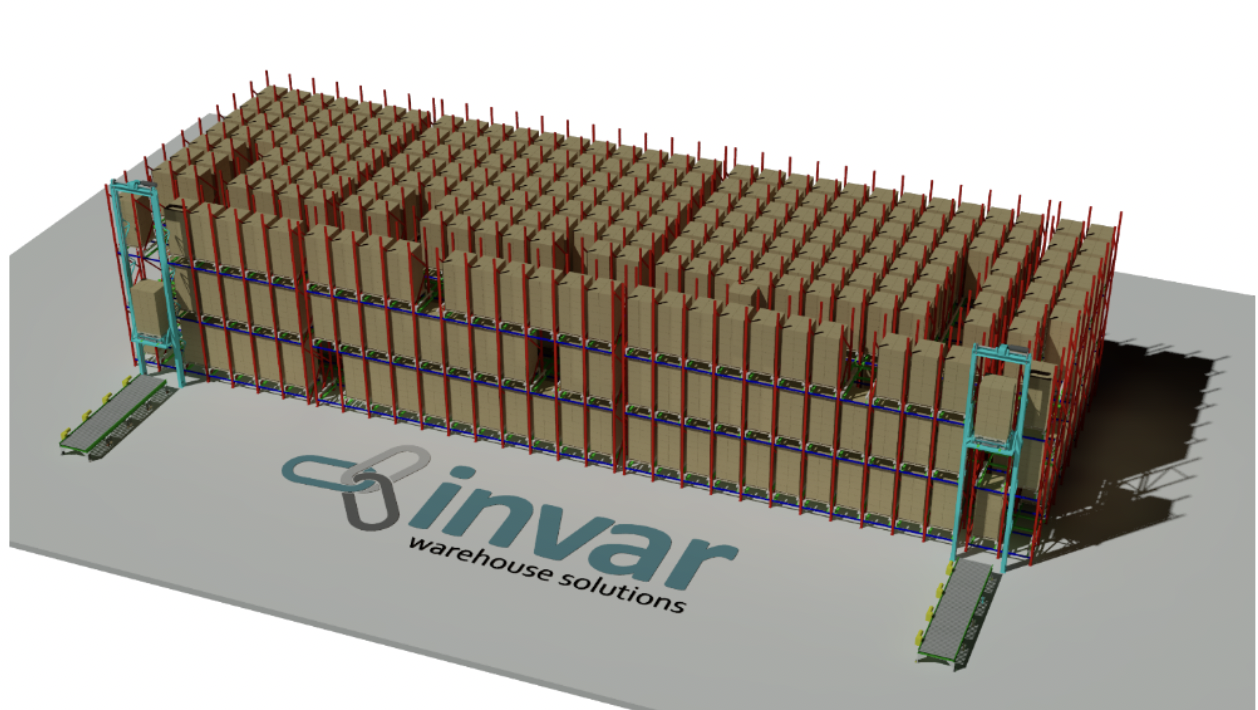

What Is a 4-Way Pallet Shuttle System?

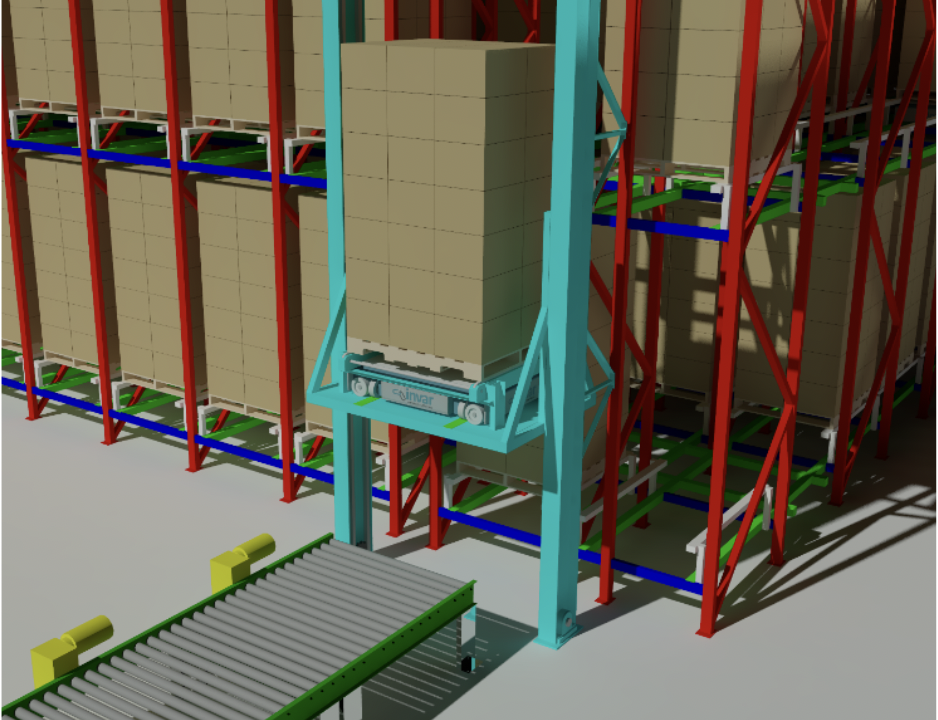

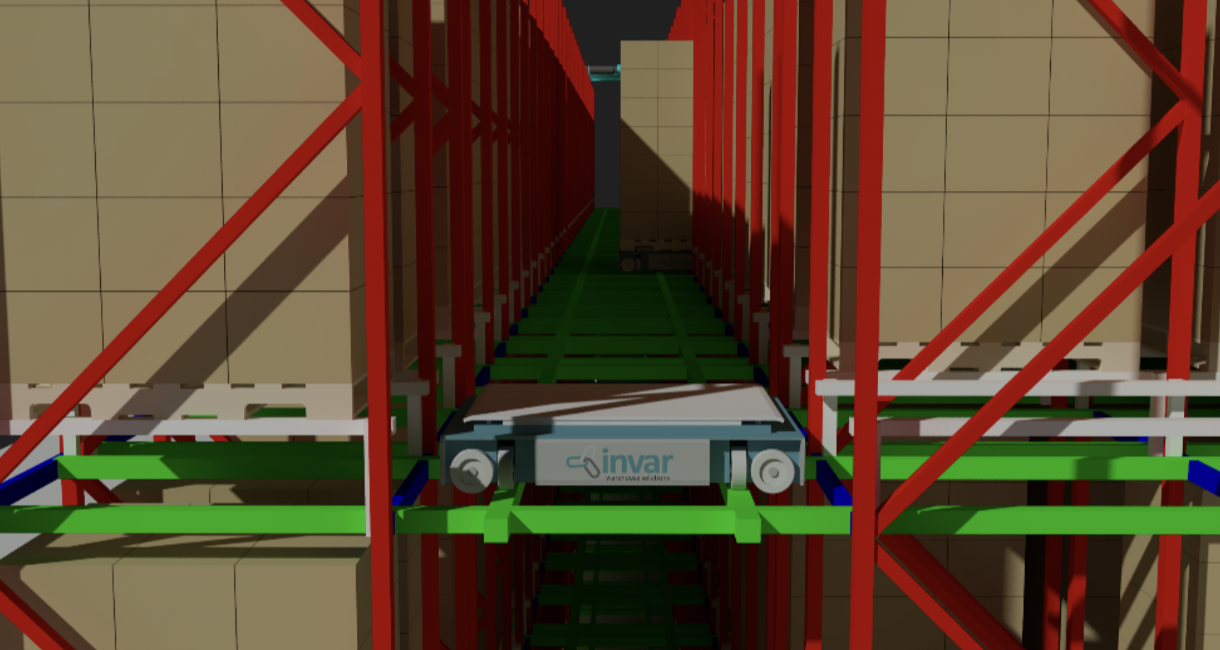

A 4-way pallet shuttle is a robotic system designed to transport pallets within a high-density racking system. Unlike earlier generations of pallet shuttles, these units can travel longitudinally, laterally, and between rack levels(via vertical lifts). They operate autonomously on rails integrated into the rack structure, either transferring pallets to and from lifts or riding the lifts themselves to change levels.

This multi-directional capability allows for maximum flexibility in routing, dynamic storage allocation, and redundancy.

Why Are 4-Way Pallet Shuttles Becoming More Popular?
While the basic concept has been around since the early 2000s, several factors have made 4-way shuttles more viable and cost-effective today:

‍
- Improved hardware reliability
- Advanced positioning and load detection controls
- Lower-cost, higher-performance racking
- Emergence of competitively priced international OEMs
- More advanced and sophisticated fleet management software
- Smarter warehouse software and optimization algorithms
‍

These advances allow for greater ROI, especially in multi-shift operations or environments where labor and space costs are high.

How Do They Compare to AS/RS Stacker Cranes?
Traditionally, deep-lane pallet storage has been handled using AS/RS cranes, which move along fixed aisles and typically handle one or two pallets at a time. Some cranes offer aisle-changing capabilities, but they still represent a more centralized, single-point-of-failure design compared to decentralized shuttle systems.
‍

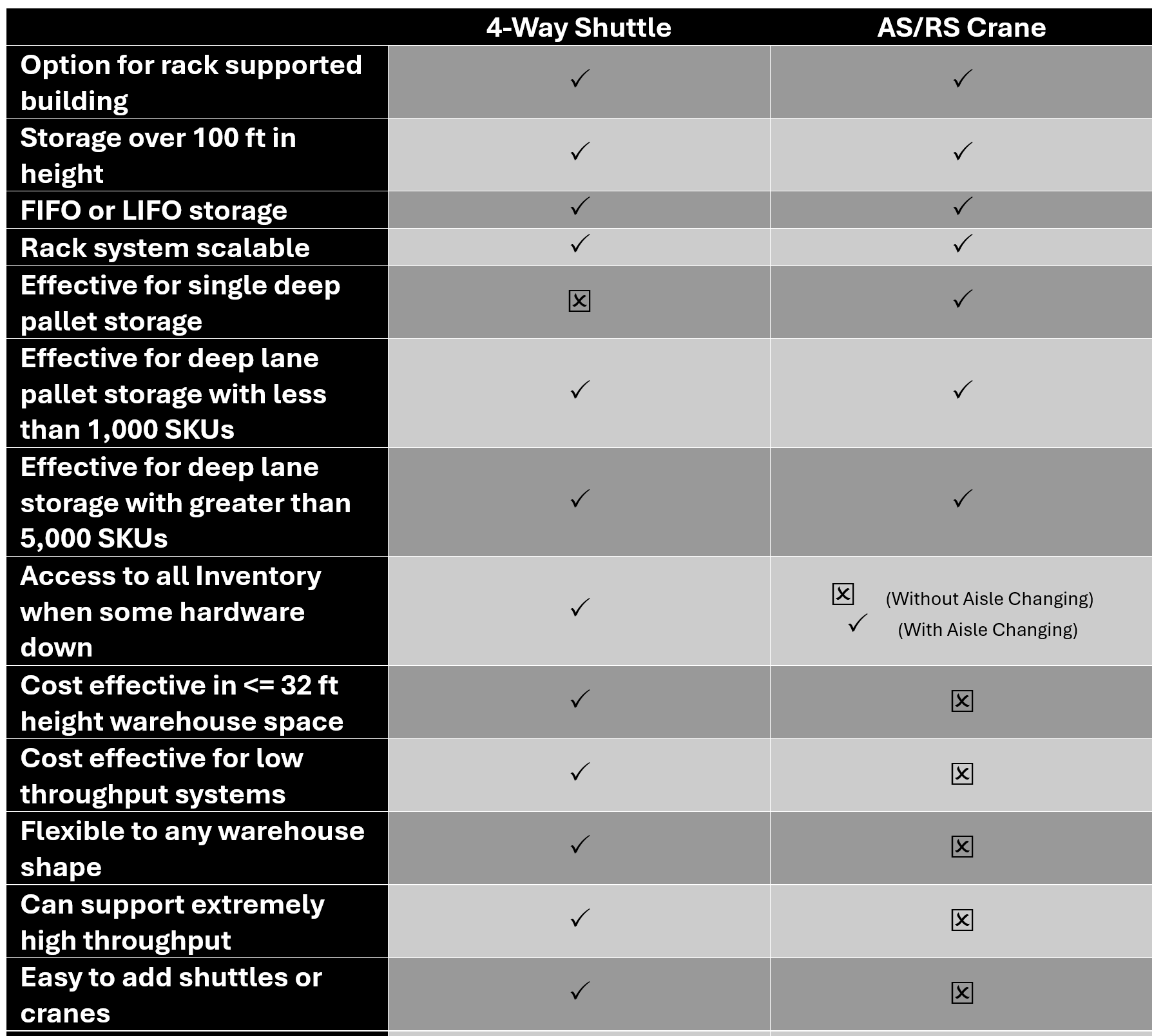

Here’s a quick comparison:

* Aisle-changing crane options may offer limited redundancy.

Best Use Cases for 4-Way Pallet Shuttles
Here are some scenarios where 4-way pallet shuttle systems deliver exceptional value:

‍
- Automation in warehouses under 30–40 ft in height, especially when high throughput demands or multi-shift operations justify automation costs.
- Cold or frozen storage environments where labor is limited and density is at a premium, especially existing buildings.
- Production line buffering where space is constrained and strict sequencing is required.
- Shipping staging or buffering where dock space is limited and truck loading sequence is important.
- Integration with AMRs, enabling seamless inbound and outbound flows.

Invar’s Experience with 4-Way Shuttle Systems
Invar Systems has successfully implemented numerous 4-way pallet shuttle solutions across multiple industries, collaborating with both established and emerging OEMs. Our proprietary Invar Warehouse System (IWS) seamlessly integrates shuttle hardware, lift systems, host WMS platforms, and adjacent automation (e.g., conveyors, AMRs).

If you're considering automation or evaluating your current storage strategy, our team is ready to help assess whether 4-way pallet shuttles are the right fit for your operation.
